Place of Origin : Guangdong, China
Model Number : Gsurface-III
Brand Name : GCL
Packaging Details : Packing with Flight case & Wooden box & Hard paper box
Supply Ability : 5000 Square Meter/Square Meters per Month
Price : Price to be discussed
MOQ : Min. order: 20
Certification : EMC/CE/ROHS/CCC/FCC/BIS
Application : Outdoor
Type : LED
Color : Full Color
Panel Size : 1280*960mm
Supplier Type : Original manufacturer, ODM, OEM
Media Available : Photo, Other, video
use : advertising publish, retail store, shopping mall, display of dishes, welcome display, self-service business, exhibition hall, wayfinding, airport, subway, Restaurant & Hotel Supplies, education, medical treatment
Pixel Pitch : 10mm, P10
Specification : Digital Poster, Video Wall
Touch Screen Type : Capacitive
Brightness : 6000nits, 6500nits
pixel density : 10000
Contrast Ratio : 5000:1
Color Depth : 256
Lifespan (hours) : 100,000
IP Rating : IP65
HS Code : 8528591090
Resolution : 2K-4K
View Angle(H/V) : H160°/V120°
Name : P10 Outdoor Truck Led Display
Display Function : Animation
Protection level : IP65
Warranty : 3 Years
Control system : Novastar
Refresh Rate : 3840Hz
Panel Material : Profile Aluminum
Maintenance : Front&Rear Service
Port : Shenzhen
Product | P5.92 | P6.67 | P8 | P10 |
Pitch | 5.92mm | 6.67mm | 8mm | 10mm |
Density (pixels/㎡) | 28476 | 22477 | 15625 | 10000 |
LED Type | SMD2727 | SMD2727 | SMD2727 | SMD2727 |
Brightness | 6000nits | 6000nits | 6000nits | 6500 nits |
Scan Method | 1/6 | 1/6 | 1/4 | 1/2 |
Cabinet Size | W1280*H960*T100mm (Standard) W1280*H640*T100mm W640*H960*T100mm W640*H640*T100mm | |||
Module Size | 320*320mm | |||
Cabinet Material | Profile Aluminum | |||
Cabinet Weight | 35.5kg | 35.5kg | 35.5kg | 35.5kg |
Protection Level | IP65 | |||
Cabinet Maintenance | 100% Front & Rear | |||
Max Power Consumption | 750 w/㎡ | 750 w/㎡ | 750 w/㎡ | 750 w/㎡ |
Average Power Consumption | 260 w/㎡ | 260 w/㎡ | 260 w/㎡ | 260 w/㎡ |
Refresh Rate(Hz) | 2880Hz | 3840Hz | 3840Hz | 3840Hz |
Grey Scale | 65536 | |||
Viewing Angle | H140°, V140° | |||
Voltage | AC100-240V (50-63HZ) |
![]() |

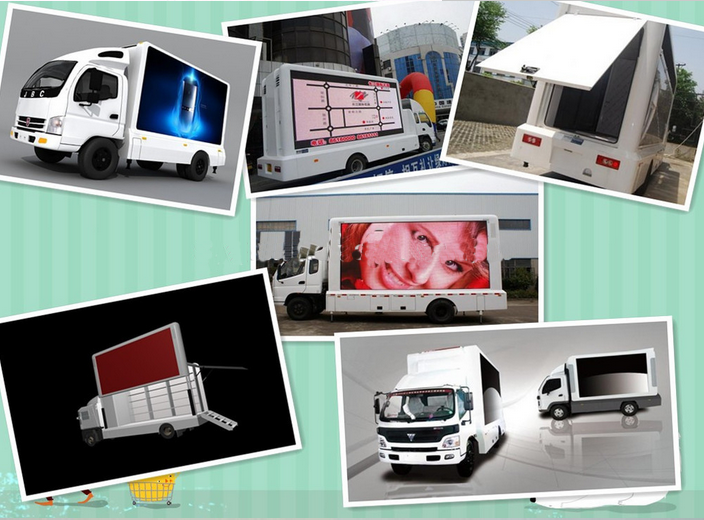

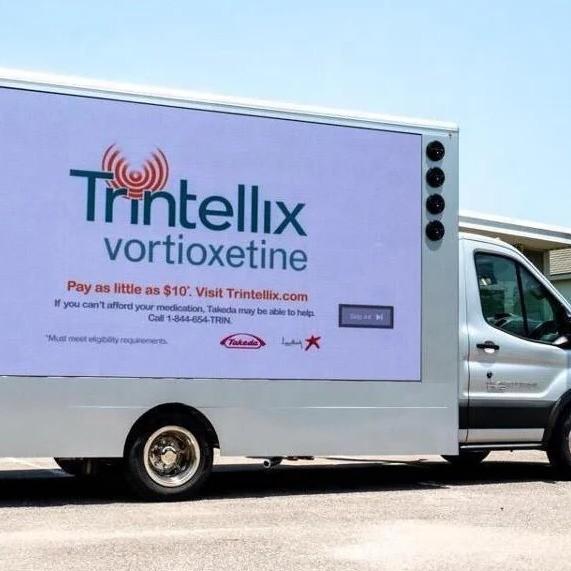

GCL Customized Outdoor Mobile Advertising Truck Van Trailer P6 6500nits Brightness Images |
