Brand Name : GCL
Model Number : PH5.71/6.67/8/10/16
Certification : EMC/CE/ROHS/CCC/FCC/BIS
Place of Origin : China
MOQ : Min. order: 20
Price : Negotiable
Payment Terms : L/C, T/T
Delivery Time : 15-25days
Packaging Details : Single package size:105X20X116 cm
Supply Ability : 2000 Square Meter/Square Meters per Month
Cabinet Size(mm) : 960*960mm
Pixel Pitch(mm) : P10 DIP
CabinetWeight : 30KG
Brightness(nits) : 10000
Protection Level : IP65
Average Power Consumption : 120W
Aluminum box and aluminum bottom shell module have excellent self-heat dissipation effect, and can be installed without air conditioning when fixed, saving electricity and being more economical.
The box body can be made of die-casting aluminum and profile aluminum, with standardized design and modular products with different point spacing, which can unify the aluminum bottom shell and box body.
Intelligent module design supports the storage of correction coefficient, temperature and voltage monitoring, and can accurately distinguish the fault points on the screen through port signals.
Support front and rear installation and maintenance at the same time, independent modular design, module, power supply, receiving card easy to achieve front and rear maintenance.
Modular design, super protection, support straight edge, arc and 90 splicing.
Can be customized according to project requirements, and is widely used in outdoor naked-eye 3D commercial advertisement design.
The product adopts dual voltage power supply, which is more energy-saving. Brand gold wire lamp is used, with brightness of 10000cd/㎡ and power consumption ≤330W/㎡.
Other attributes
Product | P5.71 | P6.67 | P8 | P10 | P10D |
Pitch | 5.71mm | 6.67mm | 8mm | 10mm | 10mm |
Density(pixels/m²) | 30625 | 22500 | 15625 | 10000 | 10000 |
LED Type | SMD2727 | SMD2727 | SMD2727 | SMD2727 | DIP346 |
Brightness | 6500nits | 6500nits | 6500nits | 6500nits | 10000nits |
Scan Method | 1/7 | 1/6 | 1/4 | 1/2 | 1/4 |
Panel Size | 960×960mm | ||||
Module Size | 480×320mm | ||||
Panel Material | Profile Aluminum | ||||
Panel Weight | 30kg | 29.5kg | 29.5kg | 29.5kg | 38.8kg |
Protection Level | IP65 | ||||
Maintenance | Front&Rear Service | ||||
Max Power Consumption | 650W/㎡ | 650W/㎡ | 650W/㎡ | 650W/㎡ | 350W/㎡ |
Average Power Consumption | 210W/㎡ | 210W/㎡ | 210W/㎡ | 210W/㎡ | 110W/㎡ |
Refresh Rate | 3840Hz | ||||
Grey Scale | 13-16bit | ||||
Viewing Angle | H140°,V120° | H140°,V120° | H140°,V120° | H140°,V120° | H100°,V50° |
Voltage | AC96~264V(50-60Hz) | ||||
Working Temperature | -30℃ to 60℃ | ||||
Working Humidity | 10%-90%RH | ||||
Color Temperature | 3000-9500K | ||||
Certifications | CE/ROHS/EMC/TUV/UL/CCC/FCC/ISO |

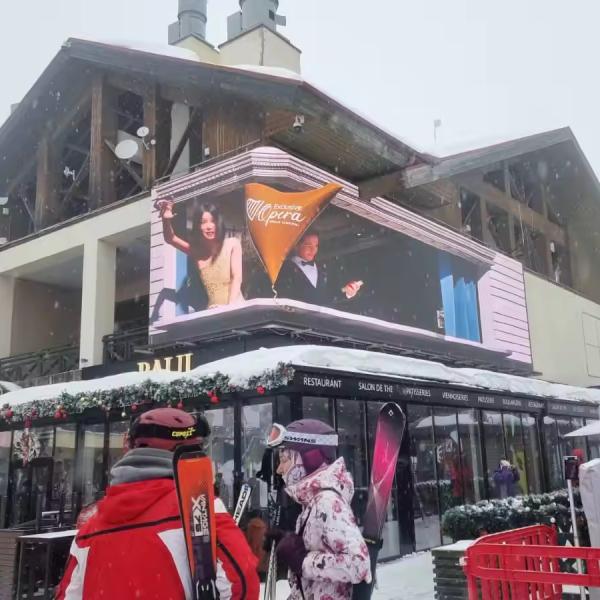

High Brightness Outdoor Fixed LED Display Images |
